JINSOR Set weave finish carbon fiber fabrics specifications
Advantages: Set weave finish can fix the carbon fiber yarn and will not disorder the fabric even pulled by hands.

Code No
(pictures&Application)		 weave pattern Thickness
(mm)		 width(cm) weight(g/m2)
 counts/inch fiber photos
warp weft warp weft
JSC 0151P & Application Set weave Plain 0.16 50~200 136 17 17 1.5K 1.5K

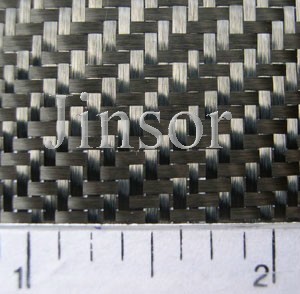

JSC 0151T & Application Set weave Twill 0.16 50~200 136 17 17 1.5K 1.5K
JSC 0152P & Application Set weave Plain 0.17 50~200 162 20 20 1.5K 1.5K
JSC 0153P & Application Set weave Plain 0.15 50~200 100 12.5 12.5 1.5K 1.5K

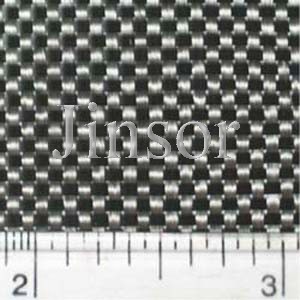

JSC 0154P & Application Set weave Plain 0.16 50~200 145 18 18 1.5K 1.5K

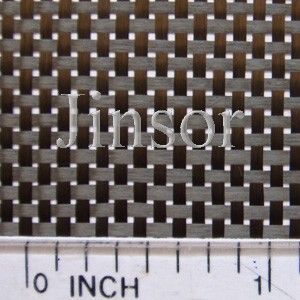

JSC 0156P & Application Set weave Plain 0.14 50~200 96 12 12 1.5K 1.5K

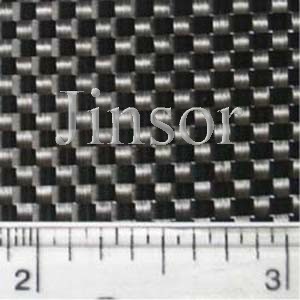

JSC 0301P & Application Set weave Plain 0.3 50~200 200 12.5 12.5 3K 3K

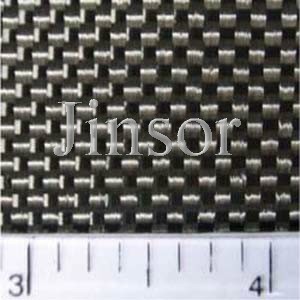

JSC 0302P & Application Set weave Plain 0.35 50~200 225 15 13 3K 3K

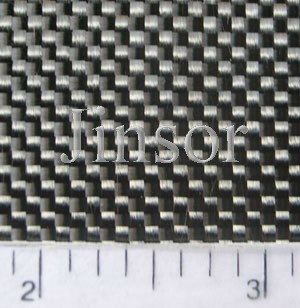

JSC 0303P & Application Set weave Plain 0.35 50~200 240 15 15 3K 3K

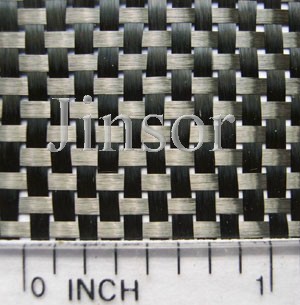

JSC 0304P & Application Set weave Plain 0.25 50~200 160 10 10 3K 3K

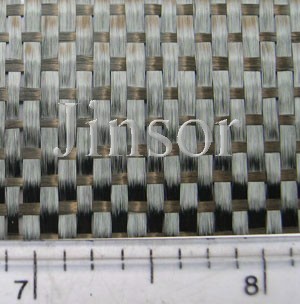

JSC 0305P & Application Set weave Plain 0.25 50~200 164 12.5 8 3K 3K

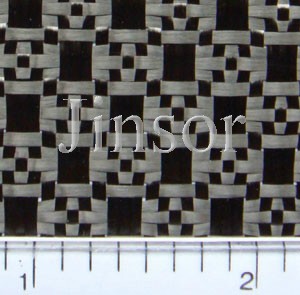

JSC 0306P & Application Set weave Plain 0.28 50~200 273 17 17 3K 3K

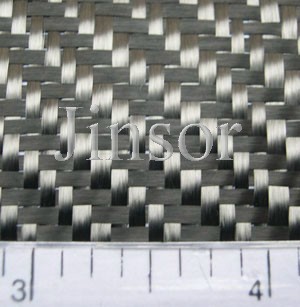

JSC 0311T & Application Set weave Twill 2x2 0.3 50~200 200 12.5 12.5 3K 3K

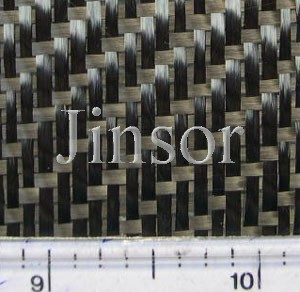

JSC 0312T & Application Set weave Twill 1x3 0.3 50~200 200 12.5 12.5 3K 3K

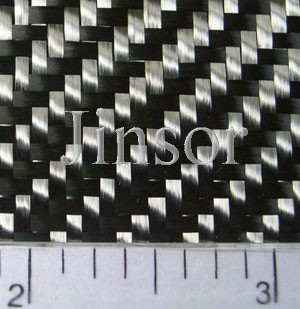

JSC 0313T & Application Set weave Twill 2x2 0.35 50~200 240 15 15 3K 3K

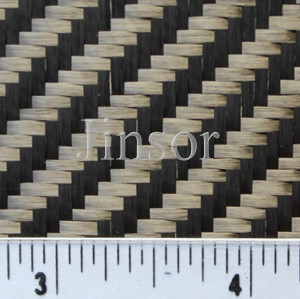

JSC 0313T3 & Application Set weave Twill 3x3 0.35 50~200 240 15 15 3K 3K

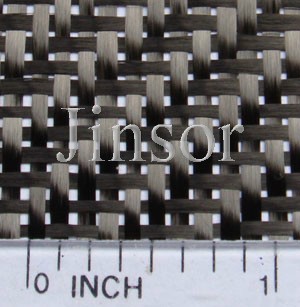

JSC 0314T & Application Set weave Twill 2x2 0.25 50~200 160 10 10 3K 3K

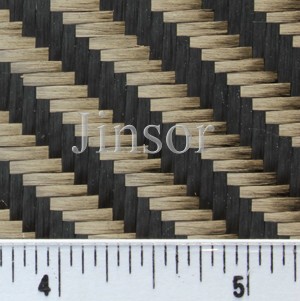

JSC 0316T4 & Application Set weave Twill 4x4 0.38 50~200 272 17 17 3K 3K

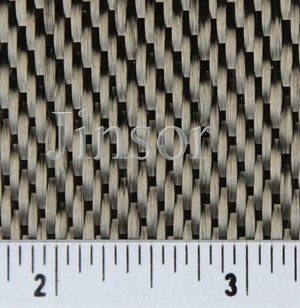

JSC 0321S & Application Set weave Satin 8H 0.42 50~200 368 23 23 3K 3K

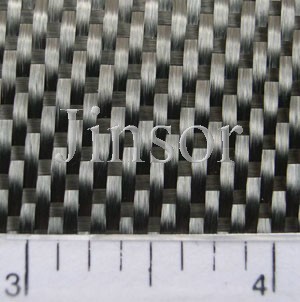

JSC 0322S & Application Set weave Satin 5H 0.4 50~200 280 17.8 17.8 3K 3K

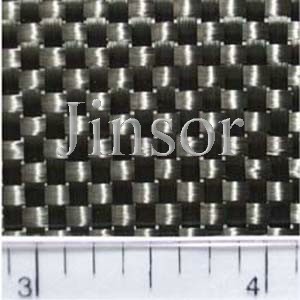

JSC 0601P & Application Set weave Plain 0.5 50~200 320 10 10 6K 6K

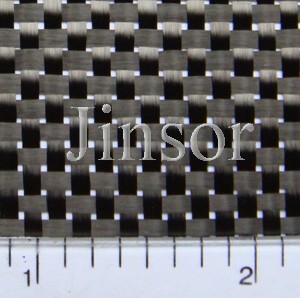

JSC 0604P & Application Set weave Plain 0.4 50~200 290 9 9 6K 6K

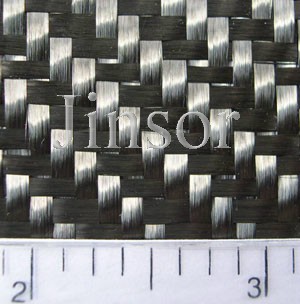

JSC 0611T & Application Set weave Twill 2x2 0.5 50~200 320 10 10 6K 6K

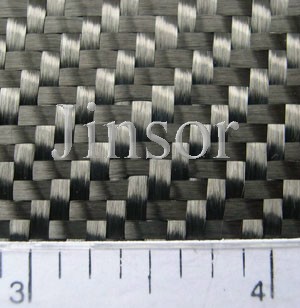

JSC 0612T & Application Set weave Twill 2x2 0.55 50~200 400 12.5 12.5 6K 6K

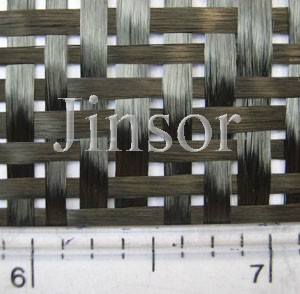

JSC 0613T & Application Set weave Twill 2x2 0.35 50~200 205 6 7 6K 6K

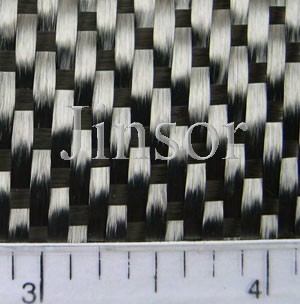

JSC 0621S & Application Set weave Satin 5H 0.55 50~200 380 12 12 6K 6K

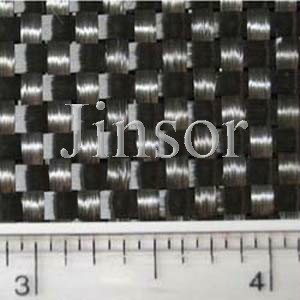

JSC 1201P & Application Set weave Plain 0.65 50~200 510 8 8 12K 12K

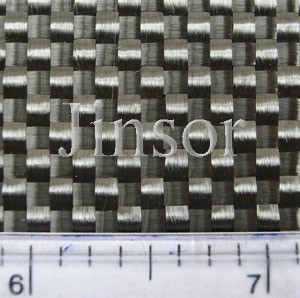

JSC 1202P & Application Set weave Plain 0.65 50~200 576 8 10 12K 12K

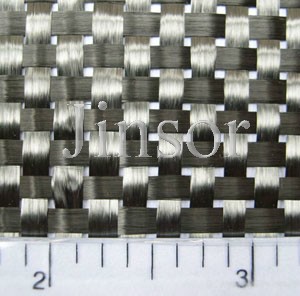

JSC 1204P & Application Set weave Plain 0.6 50~200 378 6 6 12K 12K

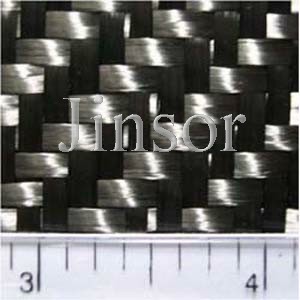

JSC 1211T & Application Set weave Twill 2x2 0.65 50~200 510 8 8 12K 12K

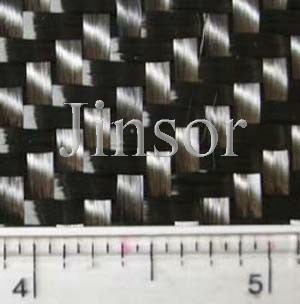

JSC 1212T & Application Set weave Twill 2x2 0.65 50~200 576 8 10 12K 12K

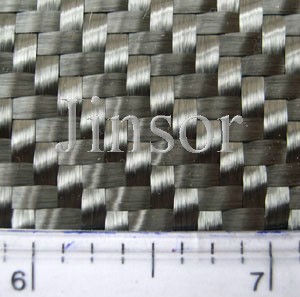

JSC 1213T & Application Set weave Twill 2x2 0.7 50~200 650 10.5 10.5 12K 12K

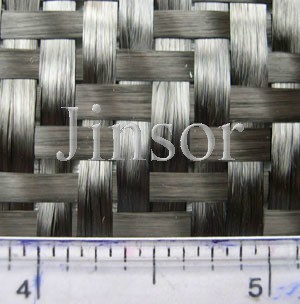

JSC 1214T & Application Set weave Twill 2x2 0.6 50~200 378 6 6 12K 12K

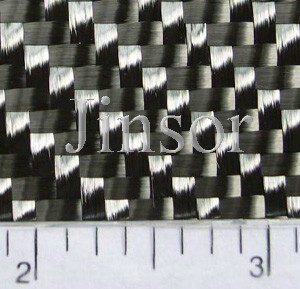

JSC 1215T & Application Set weave Twill 2x2 0.6 50~200 630 10 10 12K 12K

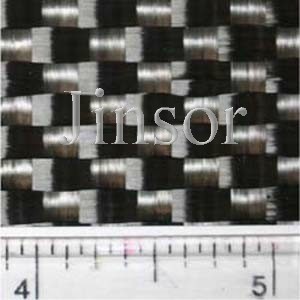

JSC 2401P & Application Set weave Plain 0.85 50~200 770 5 7 24K 24K
SCP100 & Application Set weave Plain 0.13 100 100 1.6 1.6 16mm spread 12K 16mm spread 12K
Carbon fiber fabrics application are as follows
1. carbon sporting goods: golf shaft,tennis racket,ski board,snow board,surfboard,fishing rod...
2. carbon car parts: hood,front fender,steering wheel,gear shift,mirror cover,trunk cover.
3. carbon shoes parts:shoes sole,shoes trim...
4. carbon boat parts:mast,kayak,loom,loom blade,boat shell.
5. carbon electronic parts:speaker cone,mobile phone shell,carbon laptope shell.
