JINSOR high strength ceramic fabric (1300 C heat resistance fabric)

Code No
(pictures)
woven pattern thickness
(mm)
width (cm) weight
(g/m2)
counts/inch Fiber photos
per inch
warp weft warp weft

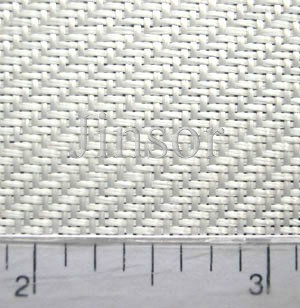

JSCC3025T Twill 0.35 100 440 30 25 200tex filament 200tex filament

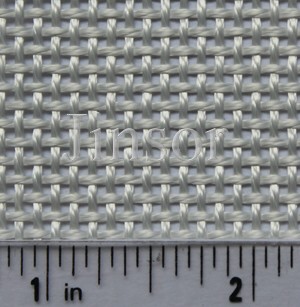

JSCC1111P Plain 0.68 100 500 11 11 600tex filament 600tex filament

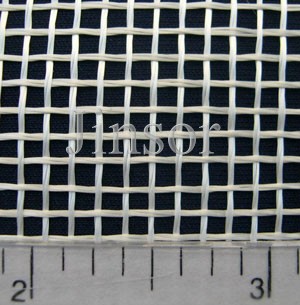

JSCC0909P Plain 0.21 100 145 9 9 200tex filament 200tex filament

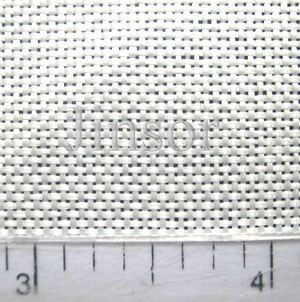

JSCC2626P Plain 0.21 100 280 26 26 133tex filament 133tex filament

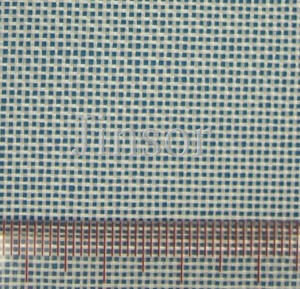

JSCC2525P Plain 0.12 100 128 25 25 67tex filament 67tex filament

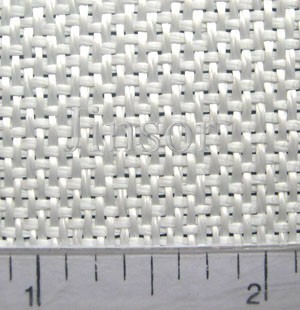

JSCC2220S satin 0.61 100 670 22 20 400tex filament 400tex filament
JSCC2422S Satin 1.4 100 740 24 22 400tex filament 400tex filament

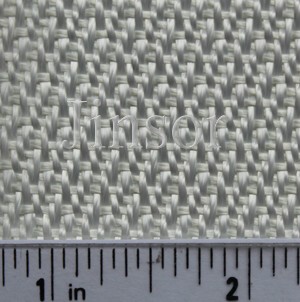

JSCC4018D Double twill 0.8 100 940 40 18 400tex filament 400tex filament

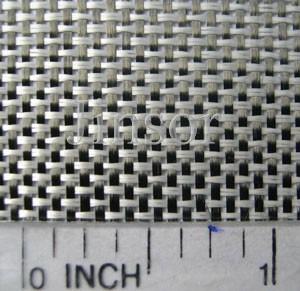

JSCC0151P Plain 0.16 100 130 17 17 1.5k carbon fiber 67tex filament

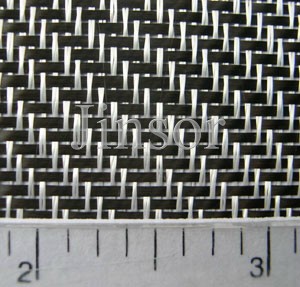

JSCC0151T Twill 0.16 100 130 17 17 1.5k carbon fiber 67tex filament

This ceramic fiber is continuous high strength ceramic filament ,not ceramic short fiber.
Advantage of continuous ceramic filament are longer time withstanding the high heat
and no ceramic powder polution problem.It is longer life type ceramic filament fabric.
This ceramic fiber fabric can be thin and in good heat insulation performance.

Application:
1.heat proof cable
2.heat proof pad
3.engin heat proof
4.casting heat proof
5.muffler heat insulation
6.semiconductor chamber heat proof
7.fuel cell heat proof


We hope to be your key partner and let you be the most competitive winner in the market.
