JINSOR Unidirectional (uniaxial) carbon fiber fabrics detail specifications
Advantages: Set weave finish can fix the carbon fiber yarn and will not disorder the fabric even pulled by hands.

Code No
(pictures)		 weave pattern Thickness
(mm)		 width(cm) weight(g/m2)
 counts/inch fiber photos
warp weft warp weft
JSUD 120 application Set weave plain 0.16 10~150 122 17 6 3K 34tex
JSUD 150 application Set weave plain 0.19 10~150 156 21.5 8 3K 34tex
JSUD 200 application Set weave plain 0.35 10~150 200 6 5 12K 11tex

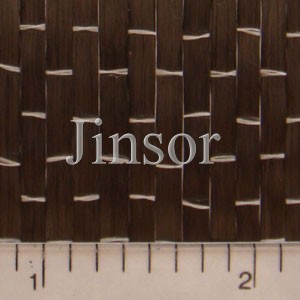

JSUD 250 application Set weave plain 0.37 10~150 256 8 5 12K 11tex
JSUD 300 application Set weave plain 0.45 10~150 300 9 5 12K 11tex
JSUD 400 application Set weave plain 0.55 10~150 400 12 5 12K 11tex
JSUD 500 application Set weave plain 0.7 10~150 500 15.6 5 12K 11tex

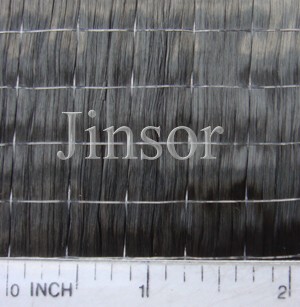

JSUD 600 application Set weave plain 0.75 10~150 600 18.76 5 12K 11tex
JSUD 800 application Set weave plain 0.85 10~150 800 25 5 12K 11tex
JSUD 1000 application Set weave plain 1.05 10~150 1000 31.25 5 12K 11tex
Applications:
1. building reinforcement,bridge retrofitting,
2. wharf repairing and retrofitting.
3. factory base construction.
4. carbon boat parts:yacht,kayak,boat shell.
5. concrete wall reparing.
